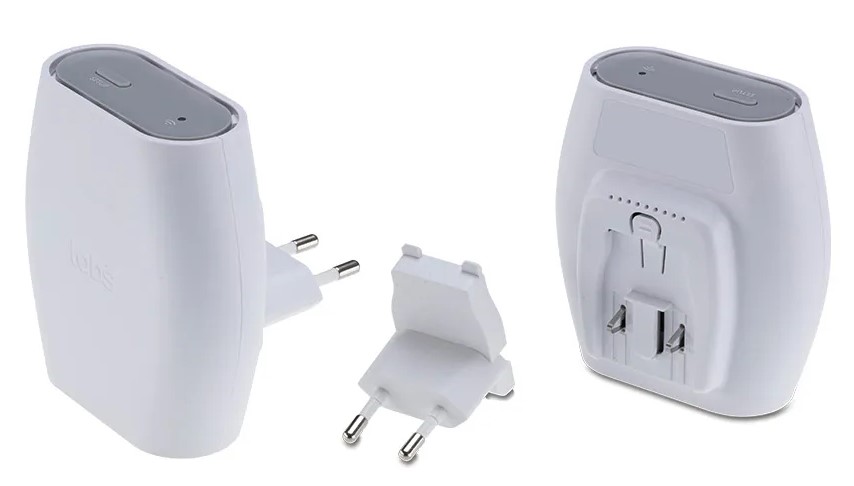

The Minihub Pro is designed to enable connection to the AWS IoT Core. It is also a low-cost
LoRaWAN compliant gateway utilizing a WiFi backhaul. It is a wall-plug type with interchanged
plug options. The gateway also includes a USB-C charging port that making it ideal for mobile
applications or to enlarge signal coverage.
Specification
LoRa
Chipset Semtech SX1308 / SX1302
Channels 8 Channels
Receive Sensitivity -140 dBm
Wi-Fi
Mode 802.11 b/g/n, Client Mode
Tx Power +20 dBm
Frequency Bands 2.4 GHz
WAN/LAN ports Not Available
USB Port USB Type-C (900mA)
Security WPA/WPA2
Dimensions 90x80x40mm
Weight 200g
Operating Temperature 0-40°C
Type Approval CE/FCC/IC/RCM/WPC/RoHS
